11,5 x 38 mm | ⇓16 mm | 48 dB
Seal profile | high-quality silicone or high-quality self-extinguishing silicone |
Sound absorption value | up to 48 dB at ground air 7 mm |
Frame protector plate | stainless steel, for knocking in, 20 x 20 mm |
Fastening | for gluing |
Can be shortened | max. 125 mm |
Release | on one side, hinge side |
Drop height adjustment | on release pin with 3 mm Allen key |
Max. drop height | 16 mm |
Profile size | 11.5 x 38 mm |
Profile material | Aluminium |
Surface | silver anodised EV1 or matt anodised stainless steel (INOX) |

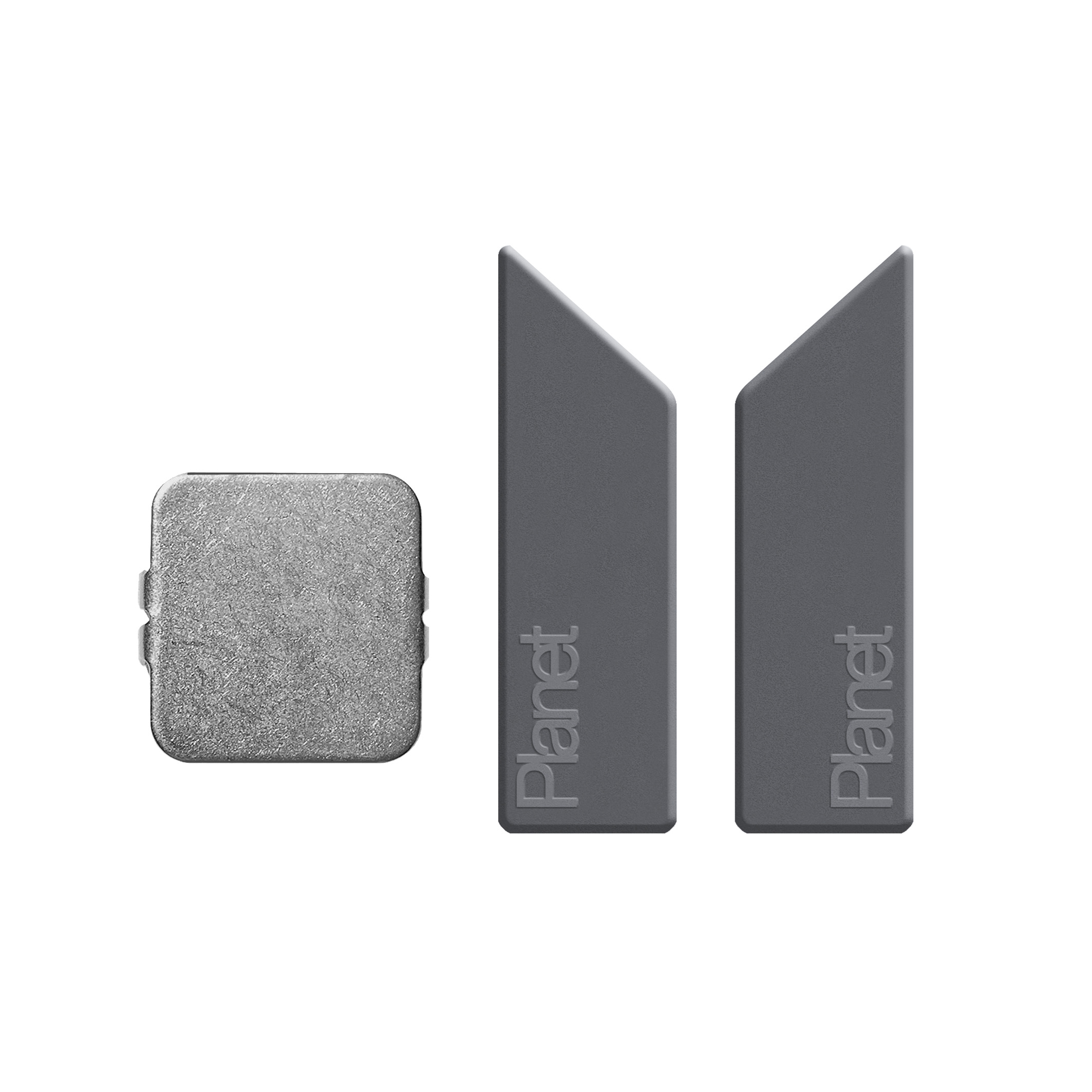

Automatic door drop-down seal Planet KG-A10, narrow RD| 48 dB, trigger on one side with parallel lowering and automatic compensation for sloping floors, protection profile in silver anodised EV1 or matt anodised stainless steel, for attachment and gluing, seal height up to 16 mm. Silicone lip. protection profile and profile made of aluminium 11.5 x 38 mm, incl. lock-side cover plate for hinged doors.
